LC2130 uses a special resonator structure, and combines practical noise suppression technology and line width compression technology to achieve ultra-narrow line width laser output as low as hundred Hz.

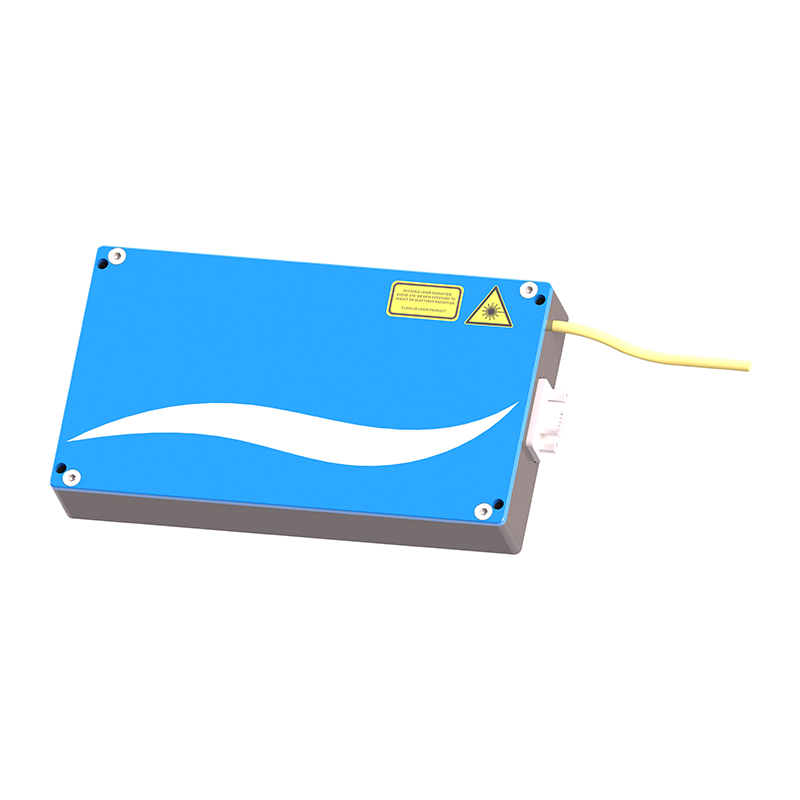

LC2130 is a 1.5μm hundred hertz ultra-narrow line width fiber laser. It uses a special resonator structure, and combines practical noise suppression technology and line width compression technology to achieve ultra-narrow line width laser output as low as hundred Hz. At the same time, special temperature control protection and anti-shock vibration design are made on the resonator, which ensures stable work in harsh environment.
| Parameters | Min | Typ | Max |
| Center Wavelength | 1530-1570nm (optional) | ||
| Laser Emission | Single longitudinal mode, continuous wave | ||
| Output Power | / | 15mw | 30mw |
| Polarization Type | Linear or random polarization (Optional) | ||
| Polarization Extinction Ratio | >23dB (polarization-maintaining) | ||
| Beam Quality | 1.05M2 | ||
| Line Width | / | 0.1kHz | / |
| Frequency Noise | 40Hz²/Hz@100Hz | ||
| 17Hz²/Hz@1Hz | |||
| 8.7Hz²/Hz@10Hz | |||
| 5.3Hz²/Hz@50Hz | |||
| Optical Signal to Noise Ratio | / | 50dB | / |
| Output Power Stability | 0.5%@10minutes, 1%@8hours | ||
| Output Power Regulation | 10% | / | 100% |
| Thermal Tuning Range | / | 0.6nm | / |
| Power Supply | 5V (DC) | ||
| Operating Temperature | -20℃ | / | 50℃ |
| Storage Temperature | -45℃ | / | 80℃ |
| Output Fiber Type | PM1550/SMF-28E | ||
| Output Fiber Length | 0.6m | ||
| Connectors | FC/APC, Other optional | ||
| Dimensions (LxWxH) | 175x140x25mm/125x70x20mm | ||
☆ Ordering Information：
| Meter Serial Number | Wavelength Range | Polarization Type | Size | Connectors |
| LC2130 | 1530-1570nm (Optional) | P=Linear polarization R=Random polarization | 1=175x140x25mm 2=125x70x20mm | FA=FC/APC C=Collimator B=Bare fibre |
E.g.: LC2130-1530-P-1-FA
